EYE TO EYE SLINGS

There are applications on ports, construction sites, steel industries, mining and a lot more heavy engineering industries, when some kind of load needs to be lifted and moved to different locations in a safe and economical manner. In such cases, the load needs to be securely lifted and also made sure that it is safe from any damage. Global has engineered a product commonly known as Polyester slings or Flat webbing slings that can accomplish the lifting task securely

Eye and Eye sling is designed to securely hold and lift objects, ensuring safety and stability during lifting operations. It is designed to securely hold and lift objects, ensuring safety and stability during lifting operations.

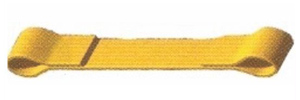

The sling is composed of a continuous loop of synthetic webbing material, typically made from durable polyester or nylon fibers. It has two “eyes” or loops formed at each end of the sling, which allows for easy attachment to lifting equipment such as hooks or shackles.

SPECIFICATION

Simplex Lifting Slings

Duplex Lifting Slings

Triplex Lifting Slings

Quadraplex Lifting Slings

Multi-Layer Heavy duty Slings

Construction

Single Layer(1 ply) of webbing with loop on either side

Two layers(2 ply) of webbing with loop on either side

Three layers(3 ply) of webbing with loop on either side

Four layers(4 ply) of webbing with loop on either side

More than 4 layers(5-10 ply) of webbing with loop on either side

Widths Available

25mm- 300mm

25mm-300mm

Working Load Limit

500kg - 6000kg

1000kg - 12000kg

1500kg - 18000kg

2000kg - 24000kg

2500kg - 50000kg

Safety Factors Available

Upto 7:1

		Straight Lift	Choke Hitch	Basket Hitch up to 7° 7° - 45° 45° - 60°			Straight Inclination 7° - 45° 45° - 60°		Choke Inclination 7° - 45° 45° - 60°
		SIMPLEX WEBBING SLINGS CAPACITY IN KGS
		WLL kg with one Webbing Sling					WLL kg with two Webbing Sling
WIDTH	COLOUR CODE
MODE FACTOR		M=1.0	M=0.8	M=2	M=1.4	M=1.0	M=1.4	M=1.0	M=1.12	M=0.8
25	VIOLET	500	400	1000	700	500	700	500	560	400
50	GREEN	1000	800	2000	1400	1000	1400	1000	1120	800
75	YELLOW	1500	1200	3000	2100	1500	2100	1500	1680	1200
100	GREY	2000	1600	4000	2800	2000	2800	2000	2240	1600
125	RED	2500	2000	5000	3500	2500	3500	2500	2800	2000
150	BROWN	3000	2400	6000	4200	3000	4200	3000	3360	2400
200	BLUE	4000	3200	8000	5600	4000	5600	4000	4480	3200
250	ORANGE	5000	4000	10000	7000	5000	7000	5000	5600	4000
300	ORANGE	6000	4800	12000	8400	6000	8400	6000	6720	4800

		Straight Lift	Choke Hitch	Basket Hitch up to 7° 7° - 45° 45° - 60°			Straight Inclination 7° - 45° 45° - 60°		Choke Inclination 7° - 45° 45° - 60°
		DUPLEX WEBBING SLINGS CAPACITY IN KGS
		WLL kg with one Webbing Sling					WLL kg with two Webbing Sling
WIDTH	COLOUR CODE
MODE FACTOR		M=1.0	M=0.8	M=2	M=1.4	M=1.0	M=1.4	M=1.0	M=1.12	M=0.8
25	VIOLET	1000	800	2000	1400	1000	1400	1000	1120	800
50	GREEN	2000	1600	4000	2800	2000	2800	2000	2240	1600
75	YELLOW	3000	2400	6000	4200	3000	4200	3000	3360	2400
100	GREY	4000	3200	8000	5600	4000	5600	4000	4480	3200
125	RED	5000	4000	10000	7000	5000	7000	5000	5600	4000
150	BROWN	6000	4800	12000	8400	6000	8400	6000	6720	4800
200	BLUE	8000	6400	16000	11200	8000	11200	8000	8960	6400
250	ORANGE	10000	8000	20000	14000	10000	14000	10000	11200	8000
300	ORANGE	12000	9600	24000	16800	12000	16800	12000	13440	9600

		Straight Lift	Choke Hitch	Basket Hitch up to 7° 7° - 45° 45° - 60°			Straight Inclination 7° - 45° 45° - 60°		Choke Inclination 7° - 45° 45° - 60°
		QUADRUPLEX WEBBING SLINGS CAPACITY IN KGS
		WLL kg with one Webbing Sling					WLL kg with two Webbing Sling
WIDTH	COLOUR CODE
MODE FACTOR		M=1.0	M=0.8	M=2	M=1.4	M=1.0	M=1.4	M=1.0	M=1.12	M=0.8
25	VIOLET	2000	1600	4000	2800	2000	2800	2000	2240	1600
50	GREEN	4000	3200	8000	5600	4000	5600	4000	4480	3200
75	YELLOW	6000	4800	12000	8400	6000	8400	6000	6720	4800
100	GREY	8000	6400	16000	11200	8000	11200	8000	8960	6400
125	RED	10000	8000	20000	14000	10000	14000	10000	11200	8000
150	BROWN	12000	9600	24000	16800	12000	16800	12000	13440	9600
200	BLUE	16000	12800	32000	22400	16000	22400	16000	17920	12800
250	ORANGE	20000	16000	40000	28000	20000	28000	20000	22400	16000
300	ORANGE	24000	19200	48000	33600	24000	33600	24000	26880	19200

		Straight Lift	Choke Hitch	Basket Hitch up to 7° 7° - 45° 45° - 60°			Straight Inclination 7° - 45° 45° - 60°		Choke Inclination 7° - 45° 45° - 60°
		FLAT MULTIPLY WEBBING SLINGS CAPACITY IN KGS
		WLL kg with one Webbing Sling					WLL kg with two Webbing Sling
WIDTH	COLOUR CODE
MODE FACTOR		M=1.0	M=0.8	M=2	M=1.4	M=1.0	M=1.4	M=1.0	M=1.12	M=0.8
300	ORANGE	36000	28800	72000	50400	36000	50400	36000	40320	28800
300	ORANGE	48000	38400	96000	67200	48000	67200	48000	53760	38400
300	ORANGE	50000	40000	100000	70000	50000	70000	50000	56000	40000
300	ORANGE	60000	48000	120000	84000	60000	84000	60000	67200	48000
300	ORANGE	72000	57600	144000	100800	72000	100800	72000	80640	57600
300	ORANGE	84000	67200	168000	117600	84000	117600	84000	94080	67200
300	ORANGE	100000	80000	200000	140000	100000	140000	100000	112000	80000
300	ORANGE	110000	88000	220000	154000	110000	154000	110000	123200	88000

KEY FEATURES OF A FLAT WEBBING SLING

Material: Flat webbing slings are usually made from high-strength synthetic materials such as polyester or nylon. These materials offer durability and resistance to abrasion, making them ideal for heavy-duty lifting applications.
Standardized Product - Global manufactures 90 tons of lifting slings per month and they are designed according to EN 1492-1 and ASME B309 standards.
Length and Width: Flat webbing slings are available in variable widths and customized lengths to accommodate various lifting needs. The length of the sling determines the reach and height of the lifting operation, while the width contributes to the overall strength and stability.
End Fittings: Flat webbing slings can be equipped with end fittings that provide secure attachment points for lifting equipment such as hooks or shackles. The end fittings are typically reinforced and designed to withstand heavy loads and prevent slippage.
Load Capacity: Flat webbing slings come in various load capacities, ranging from light-duty (e.g., 1 ton) to heavy-duty (e.g., 10 tons or more). The load capacity determines the maximum weight the sling can safely lift. Global manufactures lifting slings with load capacity that spans upto 50 tons(multi-layered flat webbing sling) and safety factor that goes upto 7:1

ADVANTAGES

Versatility

Flat webbing slings can be used for a wide range of lifting applications, including lifting objects with irregular shapes or delicate surfaces. Their flexibility allows for easy manipulation and positioning of loads.
Non-Damaging

The soft and smooth surface of flat webbing slings minimizes the risk of causing damage to the lifted objects, surfaces and even to the individual using it. This makes them suitable for lifting fragile or sensitive items.
Lightweight and Compact

Compared to other types of lifting slings(wire rope, chain slings), flat webbing slings are lightweight and easy to transport and store. They take up minimal space when not in use, making them convenient for on-site or off-site applications.
Cost-Effective

Flat webbing slings are generally more affordable than other types of lifting slings, while still providing reliable performance and durability. They offer a cost-effective solution for various lifting and securing needs.
